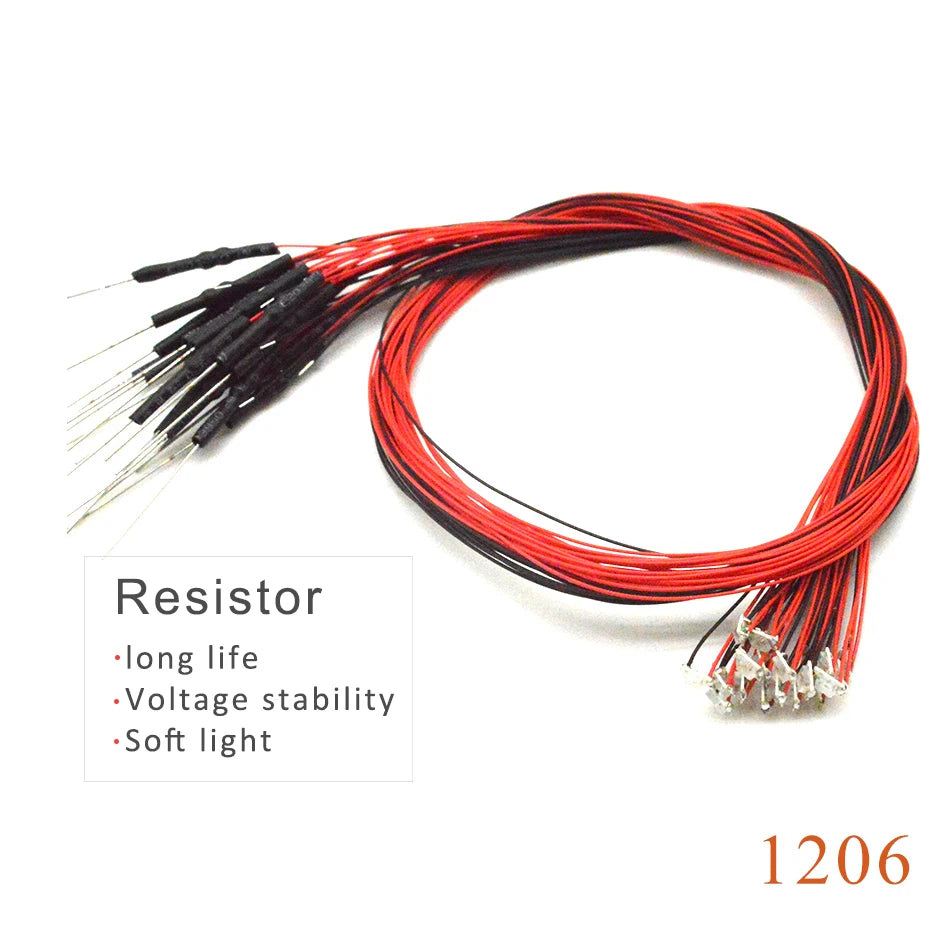

7 Colors SMD Pre-soldered micro litz wired LED leads

3V LED 1206 without the resistor
12V LED 1206 with the resistor


Size: SMD Led 1206

Wire length: approx. 200mm

Forward voltage: 2.8V~3.4V, AC or DC compatible

Forward current (typ/max): 15mA/20mA

Viewing angle: 120°

Feature:
The insulation is made from a highly heat-resistant material with a high Teflon®-fraction. there is almost no longitudinal shrinkage during soldering.
Translucent silver stranded micro litz wire with only 0.28 mm in diameter is used for optimal insulation.
Pre-wired units take all the work out of it for the modeler.
Offering maximum flexibility when applying the LED and is ensuring place-saving usage.
The Cathode is black and the Anode is red.
Small in size.
Very light in weight.
Fine workmanship and stable performance.
Long service life.
Perfect for small models and really tight places.
Package included:
10 x 1206 SMD Leds
